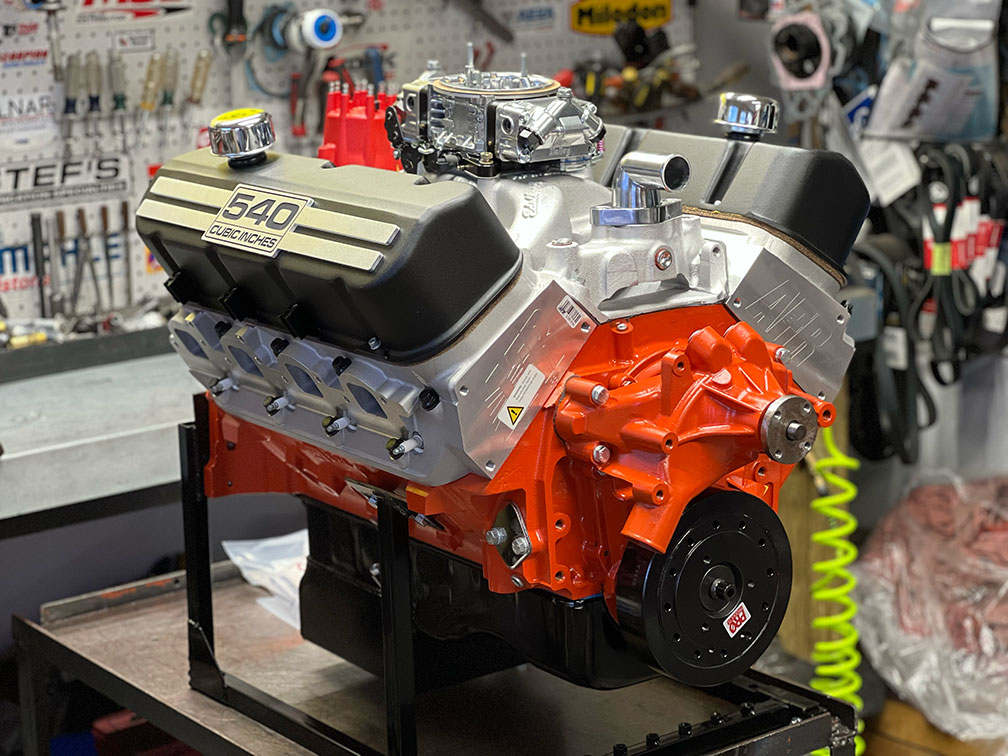

*Engine Shown With Optional Upgrades

540 CI BBC Crate Engine 650HP

$17,995.00

Big block Chevy 540 stroker with 650 Hp performance aluminum head engine combination was designed for maximum street/strip performance on pump gas. All engines can be custom painted to match your vehicle at your request. We can outfit your engine with the CVF Racing serpentine belt system if you would like. We can also assist you in choosing the proper transmission and stall speed converter combination for your vehicle.

0.19588 0.19588
5.40615 5.40615
18028.26214 18028.26214
17995.00000 17995.00000
17980.77580 17980.77580
8945.61543 8945.61543

Engine Build Specifications:

  • Custom Built 540CI 650HP BBC Crate Engine:
  • Fully Machined 502 4 Bolt Main Block
  • Block painted with 3 coats of high temp ceramic engine paint
  • Forged Steel Stroker Crankshaft (Eagle, or Scat)
  • Forged Connecting Rods (Eagle, or Scat)
  • Performance Forged Pistons (Mahle, Icon, DSS, or Diamond)
  • Performance rod and main bearing (Clevite, King or Federal Mogul)
  • Hand Filed Performance Rings
  • Rotating Assembly Is Balanced (Internal)
  • Custom Ground Hydraulic Roller Camshaft
  • Hydraulic roller lifters
  • Lifter Clips And Spider Tray
  • Three Piece True Double Roller Timing Set
  • Performance Aluminum Cylinder Heads (AFR)
  • High Performance Valve Springs And Retainers
  • ARP Head Bolts
  • 7/16 Screw In Studs And Hardened Guide Plates
  • Chrome Moly Push Rods
  • Performance Roller Rocker Arms
  • High Volume Oil Pump And Screen
  • Oil Pan
  • Dip Stick And Tube
  • Aluminum Timing Cover
  • Performance Balancer
  • Fel-Pro Performance Gaskets
  • Performance Aluminum Intake Manifold
  • Aluminum Valve Covers
  • 750 CFM Carburetor Electric Choke (Holley)
  • MSD Pro-Billet Distributor (Requires CDI Box)
  • MSD Blaster II Coil
  • Coil Bracket
  • Spark Plugs
  • 8MM Ignition Wires
  • Taylor Wire Looms
  • Breathers
  • Thermostat
  • Thermostat Housing
  • Engines are photo documented during the building process
  • 2 Year Unlimited Mileage Warranty
