Your Crate Engine Experts!

*Engine Shown With Optional Upgrades

Supercharged 427CI 1000HP LSX Crate Engine

$38,995.00

Fully dressed 2.9L Whipple supercharged 427CI 1000HP with swap kit stroker LSA crate engine. This package design will fit almost any early hot rod. We can custom paint the engine block, oil pan, timing cover, water pump, and valley pan to the color of your choice for an additional cost. The Holley Terminator X Max ECU with transmission control unit is a neat minimal wire installation that will be trouble free. We also include the Concept One or Wegner Automotive alternator serpintine pulley system to make this a fully dressed drop-in ready unit.

0.40038 0.40038
11.50889 11.50889
39009.62861 39009.62861
38995.00000 38995.00000
38926.92658 38926.92658
17360.81740 17360.81740

Engine Build Specifications:

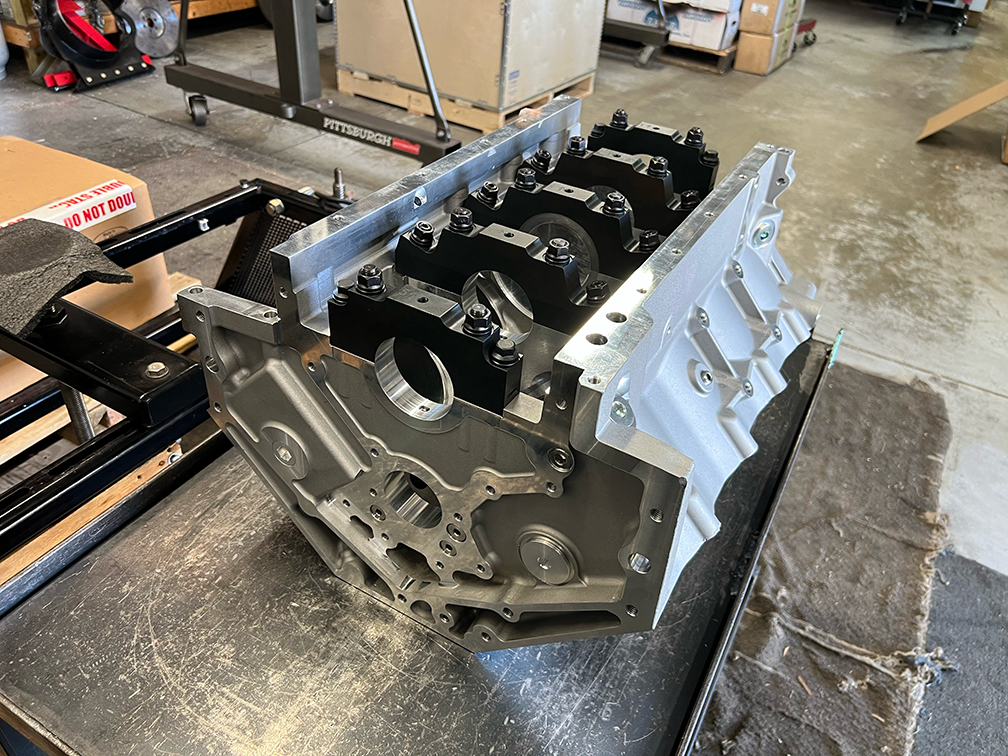

  • Fully Machined Dart SHP LS Next Iron Block
  • 4340 forged steel 4.00” stroke crankshaft (Eagle, or Scat)
  • Forged Connecting Rods 6.125”
  • Performance Forged Pistons (Mahle, Icon, DSS, or JE)
  • Complete Assembly Internally Balanced
  • Custom Ground Hydraulic Roller Camshaft
  • Hydraulic Roller lifters
  • Timing chain set
  • Melling Oil pump
  • LS3/L92 Rectangle Port Aluminum Performance Cylinder Heads (CNC Ported)
  • 2.165 Pro Series Intake Valves
  • 1.590 Pro Series Exhaust Valves
  • 1.295” Dual Performance Valve Springs
  • 7 Degree Valve Retainers And Locks
  • Roller Rocker Arms
  • Chrome Moly Pushrods
  • ARP Head studs
  • Aluminum Timing And Rear Cover
  • Aluminum Valley Tray
  • Muscle Car Stroker Oil Pan
  • Aluminum Valve Covers
  • SFI Harmonic Balancer
  • Water Pump
  • Whipple Charger 2.9L
  • Black anodized lower intake
  • Black anodized supercharger
  • DBW Throttle body
  • Oil And Filter
  • LS3 Style Coil Packs
  • Calibrated ECU (Holley Terminator X Max)
  • Main ECM Engine Wiring Harness
  • Coil Pack Harness
  • Fuel Injector Harness
  • 8MM Plug Wires
  • Wide Ban O2 Sensor
  • Intake Air Temperature Sensor
  • Crankshaft Position Sensor
  • Camshaft Position Sensor
  • Engine Coolant Temperature Sensor
  • Manifold Air Pressure Sensor
  • Spark plugs
  • Fuel Injectors
  • No Warranty!

Concept One/ Or Wegner Performance Pulley Kit:

  • Supercharger Kit
  • Black anodized finish pulleys and brackets
  • 165 Amp black alternator
  • Belt and hardware
